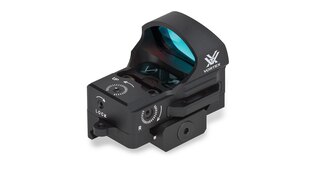

Vortex® Razor Red Dot (3 MOA)

FMC optics

Adjusted lens full multi-coat provides excellent image quality due to extremely high light transmission. It thus provides optimal observation results. This state-of-the-art technology guarantees a perfectly clear high contrast image, with sharp contours and with natural colour resolution.

Simple controls and adjustable dot

The collimator offers a red dot with 10 adjustment degrees of illumination and centre dot brightness. Control tracker is located at the top, just behind the lens, and is perfomed with 2 arrow buttons. The buttons are placed side by side. To turn on the sight, press the up arrow button. One button, with the up arrow, brightness increasing, the down arrow button brightness decreasing. We turn the focus off by holding down the illumination level button for approximately 5 seconds. When turned on, the last selected setting will kick in. Right wheel controls side correction (windage) and top wheel controls elevation correction (elevation). There's a lock on both of these settings at the back.

Juice for sight

The collector is powered by one CR 2032 battery included in the shipment. The battery compartment is sliding and positioned to the right in front.

Power and endurance in any weather

It's waterproof and impact-resistant, sealed with "o" rings, so it won't leak in. The temperature range for use is sufficient, except that battery life declines as the temperature drops, especially at sub-freezing temperatures. Average battery life is at maximum brightness setting beautiful 150 hours and at minimum setting excellent 30,000 hours. If we forget to turn the collimator off after stopping use, it will automatically turn itself off after 6 hours.

No bias

The tracker shows very little parallax. In line with current industry practice, this minimal bias in object position is considered "parallax free" and has minimal impact on instrument performance.

Important: For an aiming device to work properly, proper assembly is essential. Follow the instructions in the manual. The rifle must be equipped with a Picatinny or Weaver type rail/base for the use of this collimator.

What they mean used MOA units you can read in our magazine.
