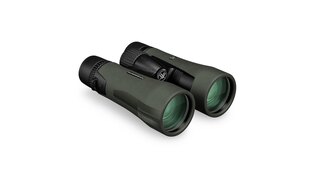

Vortex® Diamondback HD 10 x 50 Binoculars

Select a color variant
€ 325,1
Product code: DB-216
EAN:
Warranty length: 2 years
Description and parametersVideoRelated articlesProduct inquiry
Description and parameters

The Diamondback binoculars purchase costs defy the price/performance ratio in the global optics market. An incredibly efficient and very powerful optical system with enhanced lenses with dielectric coating offers a sensational image and impressive performance in low lighting - perfect observation of, for example, game hunted or other targets. Diamondback HD 10 x 50 bz the American brand Vortex is a small-sized binoculars of relatively low mass. It has sufficient magnification up to 10 times, a 50 mm and an excellent field of view 105 m / 1,000 m. After composition, it also fits into a small backpack or bags. The Diamondback 10 x 50 bino is an ideal companion for hunters as well as for hiking, not adding unnecessarily to the weight-bearing gear, but providing a possibility for quality observation even in cold or winter at freezing temperatures.

Great observation thanks to great properties

Roof prisms with multiple dielectric coating and full multi-coat on outside glass parts whose surfaces are in contact with air, provide excellent image quality due to extremely high transmissions of light. They thus provide optimal observational results. This state-of-the-art technology guarantees a perfectly clear image with high contrast, sharp contours and natural colour resolution.In addition, the external lenses coated with ArmorTek protect from scratching, grease and dirt.

HD optical system

An optimized system with selected glass elements to achieve exceptionally high resolution (high definition), to reduce chromatic aberrations and to provide excellent colour fidelity, edge-to-edge sharpness and first-class light transmittance.

Comfortable individual setting

The focus is controlled by a center wheel, so it's central and at one point we focus both sides simultaneously. It is accurate enough and allows to focus even on nearby objects from as close as 1.82 m. On the right eyepiece is a dioptric correction, through which we adapt the image exactly for our eyes. The fact that the bino can be bent at the joint along the centre axis, makes it possible to adjust the distance of the output lenses to the eye spacing. The bino adapts to all members of the family, whether children or adults, with eyes close together or far apart.

Focus Setting Procedure

Specify an object for observation, about 20 yd (about 18.29 m) distant. Stand in one place at all times. First, cover the right lens with your hand and follow the object with your left eye through the left tube. Turn the centre wheel until the focus correct. Then cover the left lens with your hand and look into the right tube with your right eye. Now turn to adjust the wheel for correction of the dioptres until the focus is correct. Remember or make a note of the setting of the diopter wheel, in case you need to reset it. From now on, you will use only a center wheel to sharpen the image.

Tough for rough conditions

It's waterproof and shockproof, plus filled with Argon (Argon is much better at protecting the inner parts of the bino from unwanted dew than Nitrogen) and sealed with "o" rings so it doesn't fog up inside. Special treatment by Rubber Armor delivers long life, absorbs shocks and provides protection of the bino from mechanical damage, as well as additional protection against environmental influences. Combined with the rough texture on the sides, it prevents the hand from sliding off, giving the user a perfect, sure and firm grip in the cold and in the heat, in rain or snow, in intense sunlight, whether the bino is wet or frozen, that is, under all conditions and circumstances.

Hermetically sealed

Special sealing technology protects high-end optics from outside influences. No dust, no dirt and no moisture can penetrate the bino and cause damage and/or defects in the supplied image.

With or without glasses, in hand or on stand

An eye rubber cup is retractable and allows the use of binoculars with glasses. The bino can be either held in the hand during observation (for wearing binoculars suspended from the neck, the bino is equipped on both sides with eyelets to secure the supplied strap) or place it on a tripod (for this purpose, the bino is fitted with a tripod adapter slot).I t also offers the option of attachment to a car window.

Stored safe

And when we don't use the binoculars, we store them in the supplied GlassPak, in which they are securely stored and transported. The lenses protect both the lenses and the output lesnes. We also find a cleaning towel and a carry strap in the pouch.

Take care of it

When you are not using the binoculars, put the caps on the lenses and place it in the supplied case. To maintain the bino's brilliant performance, lenses need to be kept clean regularly, removing smudges, impurities, oils or fingerprints. First, always remove coarse impurities (so they don't damage the lens when cleaning) with a fine brush, as specified. Then use your breath to mist the lenses and clean them with a non-abrasive cloth. Never use tissues (either paper or cloth), cotton or flannel fabrics. They could cause scratches, which then spoil the view. Ideally, use a dedicated set, such as the Fog Free by Vortex.

Warning: Do not use the binoculars to observe the sun or other sources of intense light. This bino is not designed for this and such surveillance can damage the retina or cornea and in extreme cases may lead to blindness!

Benefits you need to know about:

  • binoculars
  • always on hand
  • fairly light and compact
  • easy to control
  • single hand handling
  • modern technologies
  • magnesium construction reduces the weight of the telescope and increases its strength
  • waterproof – sealed with "o" rings
  • impact-resistant
  • treated against internal fogging - filled with Argon
  • roof prisms
  • lenses with anti-reflective modification of FMC
  • ArmorTek®
  • prisms and lenses with dielectric treatment
  • very clear high contrast image, with sharp contours and with natural colour resolution
  • cleaner and sharper image - HD optic system
  • adjustable multi-positional eye cup allows use with glasses
  • dioptric correction on the right side
  • center wheel
  • special treatment by Rubber Amor with a texture to make sure of grip
  • short center - plenty of room to hold hands comfortably
  • slots for tripod
  • carry strap
  • sealing technology protects high-end optics from external influences
  • neck cord
  • GlassPak™
  • covers on both sides
Do you like the product?
Buy Vortex® Diamondback HD 10 x 50 Binoculars at a special price € 325,1
Important parameters
Height / length
16,8 cm
Width
13,5 cm
Magnification
10 x
Weight
850 g
Other specifications
Lens diameter: 50 mm
Eye relief: 1.7 cm
Exit pupil diameter: 5 mm
Field of view at 1,000 yd (approx. 914.4 m) - linear: 315' = approx. 96.01 m
Field of view at 1,000 m - linear: approx. 105 m
Field of view at 1,000 yd (approx. 914.4 m) - Angular: 6 o
Shortest subject focus distance: 1.52 m
Eye relief: 60 mm to 75 mm
Compatible with glasses: yes
Waterproofness: yes, sealed with “o“ rings
Impact resistance: yes, Rubber Armor
Anti-fog technology: yes, filled with argon
Fixation: neck cord, tripod, car window
Prismatic system: roof prisms
Prisms finish: dielectric
Lenses coating: anti-reflective FMC + ArmorTek®
Parts of delivery
binocular
Carry strap round the neck
Covers on both sides - attached lens covers and rain covers for the exit pupils
Lenses cloth
Transport case GlassPak™ with chest harness
Binocular manual
Case manual
