Icon 700 Headlamp Black Diamond®

€ 85,9
Ready to ship
Product with limited shipping options outside EU .
Delivery from € 6.9
Product code: BD620654
EAN: 7936614488770
Warranty length: 2 years
Description and parametersVideoTutorials and files to downloadRelated articlesProduct inquiry
Description and parameters

Black Diamond headlamps are the result of long-term development. One of their best models is Icon 700 - powerful and durable headlamp with features you will certainly appreciate. Thanks to the removable battery pack you can use it on a multi-day backcountry trip and it's max output and max beam distance will help you to find your way much more easily.

Brightness memory

Brightness memory, which is feature of Black Diamond hedlamps, allows you to turn the light on and off at a chosen brightness without reverting back to full power.

Power Tap Technology

Icon 700 features PowerTap Technology which allows instant transitioning between full and dimmed power. The settings then include full strength (in proximity and distance modes), dimming, strobe, RGB night light options and lock mode.

Digital lock

Black Diamond Icon 700 has also digital lock function which feature safeguards against accidental use (and wasteful discharge of batteries) when stored in a pack or pocket.

Water and dust resistant

The Icon 700 Headlamp Black Diamond is IP67 dust and water-proof tested. It means, for example, that it can operate up to 1 meter underwater for 30 minutes.

Black Diamond most powerful headlamp

Headlamp's max output makes it Black Diamond's most powerful headlamp. Such headlamp naturally needs powerful batteries. In this case you can use either standard AA batteries or Rechargeable Battery Pack (sold separately).

Benefits you need to know about:

  • powerful outdoor headlamp with very high output
  • settings - full strength, dimming, strobe, RGB night light options and lock mode
  • multifaceted optical efficiency lens technology
  • dustproof and waterproof tested (IP67)
  • digital lock function
  • brightness setting memory
  • standard AA batteries (part of delivery) or Rechargeable Battery Pack (sold separately)


User's guide

Measured to ANSI FL 1 standard in laboratory conditions, using 4 AA alkaline batteries, at a certain temperature and humidity. Values may vary depending on conditions, settings used or different brands of batteries.

Mode Luminous flux (lm) Distance (m) Runtime/full charge Reserve
LOW 6 12 190 h 0 h
MED 350 60 80 h 60 h
MAX
700 140 7 h 150 h

Runtime 10 % of initial output – ANSI FL 1 Standard

Reserve – additional time the headlamp will produce usable light (measured to 0,25 lx with 4 m distance)

Do you like the product?
Buy Icon 700 Headlamp Black Diamond® at a special price € 85,9
Important parameters
Number of modes
15
Types of batteries / accumulators
Hybrid flashlight / dual power supply: 1x rechargeable Li-ion battery Icon 5 200 mAh or 4x alkaline battery AA (pencil)
Weight in detail
Without batteries: 140 g
With batteries: 236 g
Other specifications
Number of led LED: 3 (1 large white, 1 small white, 1 small coloured)
Available modes: white light of different intensity - lowest, medium and maximum light + back-up mode + coloured light + white and coloured strobe + SOS signalling (white and coloured)
Direct and downward angle illumination
Maximum illumination time: 190 h
Control: 2 buttons on top of flashlight + PowerTap™ technology on the right side of flashlight to turn on/off the small white LED (together with the large one - switching between dim and maximum illumination)
Brightness setting memory
Battery indicator on side of flashlight (3 blue LEDs - 6 battery levels - indicated by their glowing or flashing)
Locking function
Headband and top strap can be hand washed and left to dry (flashlight and battery case must be removed; do not expose to direct sunlight)
Protection: IP67 (can withstand immersion to a depth of 1 m for 30 min)
Operating temperature: -17 °C to +43 °C
Can also be attached to the chest strap of a backpack, to another strap on a backpack or bag, etc.

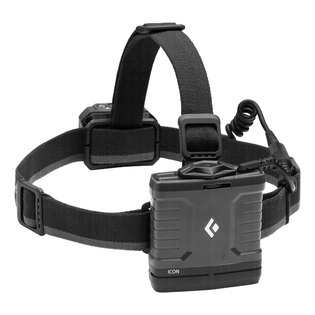

Battery case can also be attached elsewhere, e.g. on a belt (a longer cable for connection to the flashlight is included)
Parts of delivery
Flashlight
Headband + removable top strap
4x AA alkaline batteries (pencil) Duracell®
Battery case
Longer connection cable
