LED flashlight LD22 V2.0 / 800 Im is the latest generation of Fenix flashlights. You will appreciate its practical properties not only inside your house, at the cottage, in the car, during an adventure trip or camping, but also as part of an evacuation package. All lamp parameters such as afterglow, impact resistance, water resistance, luminous flux or battery operation time are measured in accordance with the ANSI/NEMA FL 1-2009 standard.
One Li-ion battery type ARB-L14-1100U and a built-in USB-C connector are used to power the flashlight. The USB-C charging connector can be replaced with two AA batteries if needed. However, it is necessary to expect significantly lower performance. The flashlight is fitted with a highly efficient Luminus SST-20 LED capable of lighting in 7 modes, including strobe and SOS lighting.

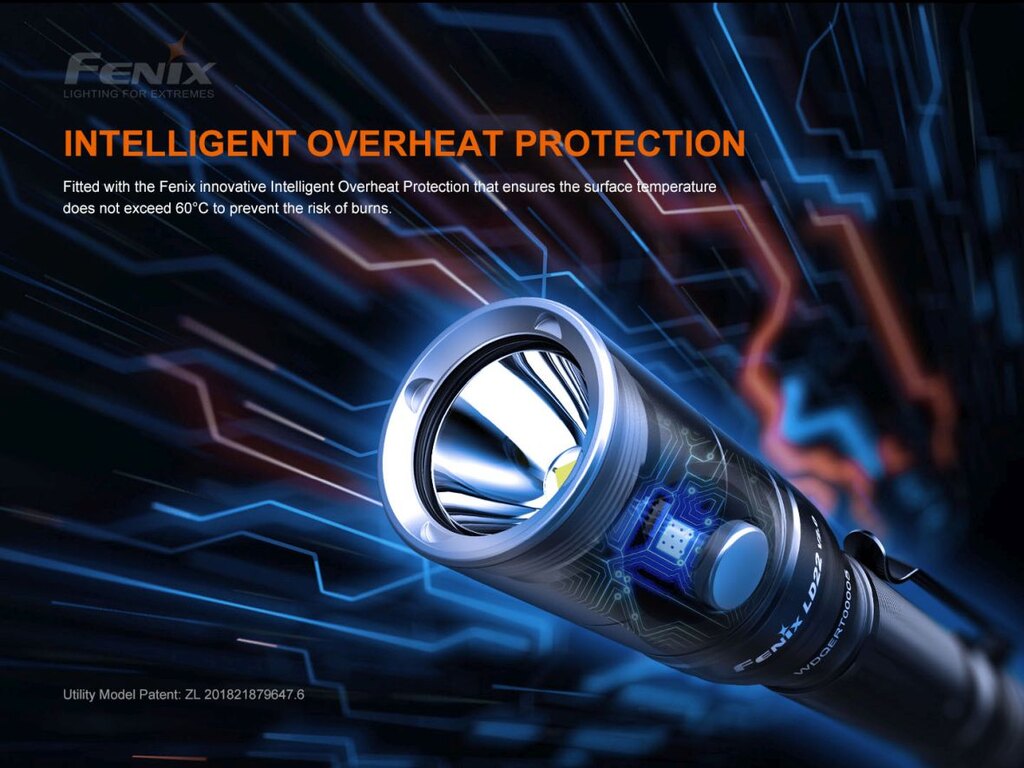

The Fenix flashlight delivers high power, which is why its temperature rises. If the temperature of the lamp rises above 60 degrees Celsius, the lamp will automatically start to gradually reduce its power. When the temperature drops, the performance automatically returns to the initial level.
The flashlight automatically alerts you to low batteries by gradually switching to the lowest mode. In the lowest mode, it flashes 3 times every 5 minutes. This indicates the need to charge the battery.
During charging, the light on the top of the battery lights up red. It lights up blue when fully charged. To charge successfully, remove the battery from the flashlight, plug the USB-C cable into the side USB-C connector on the battery, plug the other end into a computer, power bank or USB adapter to the power line or car (not included in the package).
Measured to ANSI FL 1 standard in laboratory conditions, using mentioned batteries, at temperature 21 °C (+/- 3 °C) and humidity 50 % - 80 %. Values may vary depending on conditions, settings used or different brands of batteries.
Using rechargeable battery Fenix® ARB-L14-1100U | ||||
Mode | Luminous flux (lm) | Dosvit (m) | Runtime/full charge | Intensity(cd) (cd) |
Eco | 2 | 11 | 220 h | 30 |
Low | 30 | 43 | 22 h 20 min | 460 |
Medium | 100 | 76 | 7 h | 1 440 |
High | 350 | 142 | 1 h 40 min | 5 000 |
Turbo | 800 | 214 | 54 min | 11 500 |
Strobe | 800 | - | - | - |
SOS | 100 | - | - | - |
Using 2 alkaline AA batteries Pairdeer® | ||||
Mode | Luminous flux (lm) | Distance (m) | Runtime | Intensity (cd) |
Eco | 2 | 11 | 190 h | 30 |
Low | 30 | 43 | 19 h 45 min | 460 |
Medium | 100 | 76 | 5 h 50 min | 1 440 |
High | 350 | 142 | 1 h 15 min | 5 000 |
Strobe | 350 | - | - | - |
SOS | 100 | - | - | - |
The Turbo mode is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.
Total length | 14,8 cm |
Number of modes | 7 |
Weight | 96 g |
Types of batteries / accumulators | charging 2× AA batteries |
Material | Aluminium 6061 |
Surface finish | Hard anodizing (type III) |
Dimensions in detail | Package size: 17,5 × 8,4 × 3 cm Head diameter: 2,2 cm Body diameter: 1,8 cm |
Other specifications | Number of LED: 1 white LED type: Luminus SFT-70 LED life: 50 000 h Available modes: white LED in front - 7 modes: white light of different intensity - eco, low, medium, high and turbo + strobe + SOS Low battery alert Memory of last used mode (except strobe and SOS) Charging through USB-C connector Smart overheating protection Maximum illuminatgion time (eco mode on rechargeable battery): 220 h Maximum illumination time (eco mode with AA batteries: 190 h Illumination time (white light at highest intensity): 54 min Control: function button on side + tactical button on back Protection: IP68 (can withstand immersion to a depth of 2 m for 30 min) Impact resistance: 1 m Stainless steel striking facet |
Parts of delivery | flashlight Fenix ARB-L14-1100U rechargeable battery 2× Pairdeer alkaline batteries (AA) charging cable USB-C Spare seal (o-ring) lanyard removable double-sided clip belt pouch user manual |
