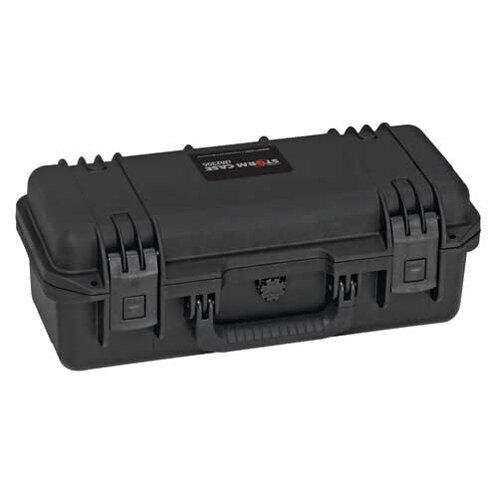

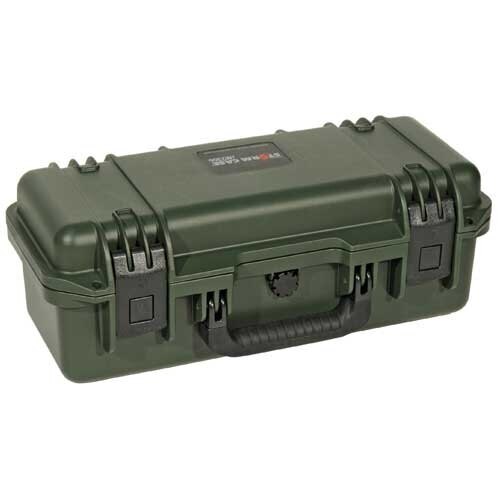

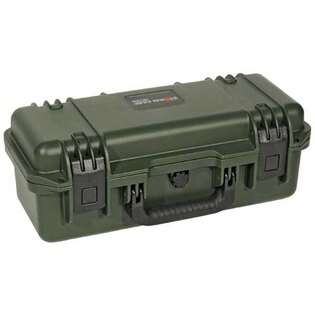

Storm Case is a product line of very high-quality and durable, nearly indestructible cases by Peli Products, S.L.U. Specifically, the iM2306 case boasts a lightweight and strong construction, made from special HPX resin.
The Peli Storm Case iM2306 has a total of 2 latches that can be closed with one hand, further simplifying handling the case. The case is lockable and features two padlock hasps (1 for each latch). Its transportation is made easier with a comfortable double-layer handle with a rubber grip on the underside. Additionally, this case meets the requirements for luggage used on water or on board.
Overall, this case is very robust – equipped with highly durable hinges and is also waterproof, dustproof and impact-resistant. Sealing is accomplished via an O-ring. The luggage meets (not only) military standards MIL-STD-810F, FED-STD-101C and ATA 300. It handles extreme temperatures in the range of -29 °C to +60 °C. We must also mention the Vortex pressure equalization valve. In this variant, the case is supplied with internal foam (padding).
Height / length | 46,2 cm |
Width | 21,3 cm |
Depth | 17 cm |
Volume | 10,8 l |
Material in detail | Case body: HPX® injection molded resin "O" rings: synthetic elastomer EPDM (Ethylene Propylene Diene Monomer) Foam: polyester with a density of 1.3 to 1.35g/cm³ (approx. 130 to 135kg/m³) Valve: Gore-Tex® membrane |
Dimensions in detail | Internal dimensions: 43.2cm × 16cm × 15.8cm Inner depth of the trunk without the lid: 10.7cm Inner lid depth: 5.1cm Overall inner depth of the case: 15.8cm Padlock hole diameter: 0.8cm |
Weight in detail | Empty case: 2kg Case with foam: 2.1kg |
Fixing / transport | 1 comfortable two-layer handle on the long side with a soft rubber grip |
Other specifications | Very durable Durable hinges Waterproof Dustproof Shockproof Closure: 2 large buckles / latches on the long side - operable with one hand Lockable: 2 holes / hasp for padlock on the long side (at the edges next to the buckles) --- Vortex™ automatic pressure valve Operating temperature: -29°C to +60°C Buoyancy (ability to stay afloat in water): max 11kg Protection: IP67 - tested protection against dust and water ingress according to the EN 60529 standard (dust-tight + withstands immersion up to 1m for 30min) Made in USA |

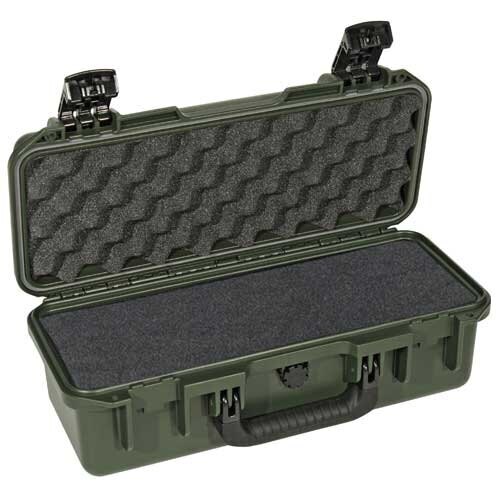

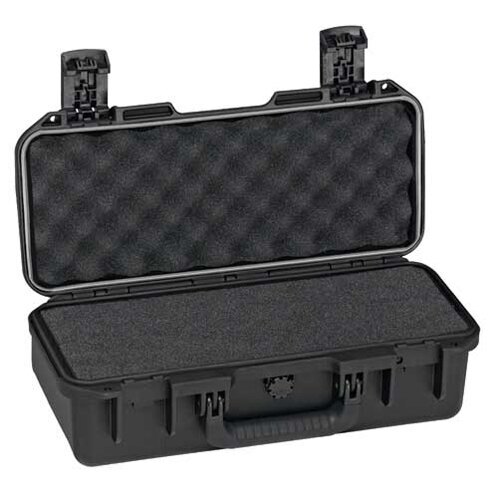

Parts of delivery | Case Protective foam - 4 layers: 1 corrugated foam with a thickness of 5.1cm for the lid 2 pick & pluck foam with a thickness of 4.6cm with a grid of pre-cut blocks/squares measuring approximately 1.3cm × 1.3cm 3 pick & pluck foam with a thickness of 4.6cm with a grid of pre-cut blocks/squares measuring approximately 1.3cm × 1.3cm 4 full foam with a thickness of 1.6cm for the bottom of the case |
